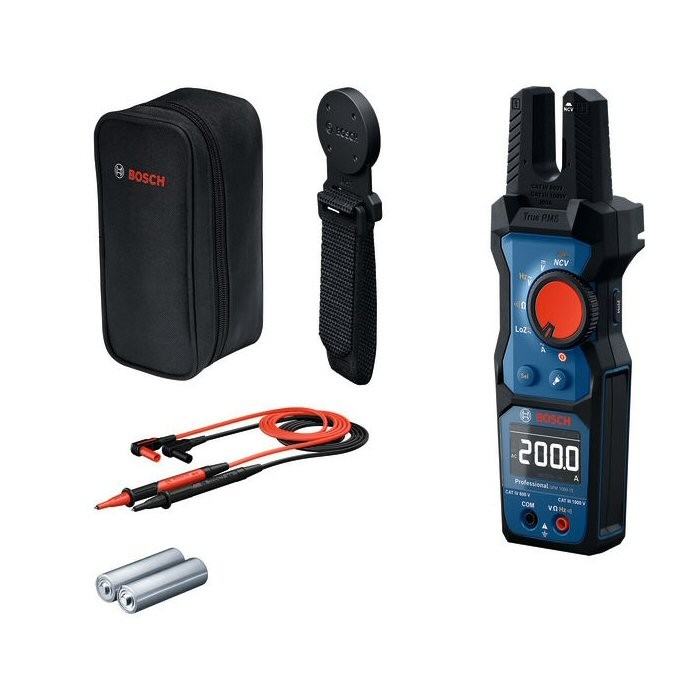

Bosch GFM1000-15 + MH1 Fork Meter with Magnetic Hanger

Bosch GFM1000-15 + MH1 Fork Meter with Magnetic Hanger

GFM1000-15-MH1 Bosch Fork Meter plus Magnetic Hanger uses an inverted LED display designed specifically for tradesmen who need quick and efficient AC current and AC/DC voltage checks, with an open clamp design, the trade can measure current up to 200Amps AC without test leads saving time and effort. This all-in-one tool measures current AC, voltage AC/DC up to 1000v, continuity, resistance, and has LoZ V AC/DC integrated, ideal for electricians and HVAC technicians.

The GFM1000-15 + MH1 is great for non-invasive AC current measurement allowing faster work without breaking circuits. The compact design makes it easy to use in tight spaces, such as cramped electrical panels, as well as other challenging environments plus the integrated non-contact voltage detector (NCV) and flashlight enhance safety and convenience, making it a reliable choice for electrical installations, maintenance, and repairs.

The 0601077401 Fork Meter comes with outstanding protection backed by CAT IV 600v and CAT III 1000v ratings, high-quality measuring strips made of flexible, long-lasting silicone provide durability, while convenient storage for measuring tips and a compact design make it easy to carry and use on any jobsite. Other outstanding features include true RMS for accurate readings and a hold function easily capture readings, a comfortable grip reduces fatigue during extended use. This versatile Bosch Fork Meter comes with the MH1 Magnetic Hanger allowing the operator to use it hands free when  required plus uses its IP54 weather protection and tough build quality to ensure resistance to accidental drops up to 2mtr and use in harsh conditions out on site.

Technical Specification of Bosch GFM1000-15+MH1 Fork Meter

• Open clamp design
• Non invasive measurement
• All-in-one tool ideal for work in tight spaces
• Inverted LCD display
• Quick and efficient AC current and AC/DC voltage checks
• No test leads required
• Ideal for electricians and HVAC technicians
• Designed for electrical installations, maintenance and repairs
• Integrated non-contact voltage detector
• Hold function to capture readings
• MH1 magnetic hanger
• Flashlight
• AC voltage 1000v
• AC voltage resolution 1v
• AC voltage accuracy ± 1.5 % + 5
• AC current 200amps
• AC current resolution 0.1amps
• AC current accuracy ± 3.0% + 3
• DC voltage 1000v
• DC voltage resolution 1v
• DC voltage accuracy ± 1.0 % + 2
• Resistance 60 MΩ
• Resistance resolution 0.01 MOhm
• Resistance accuracy ± 2.0 % + 5
• Continuity yes
• Continuity resolution 0.1 Ohm
• Continuity accuracy ± 1.0 % + 5
• Frequency resolution 0.01 kHz
• Frequency accuracy ± 0.1 % + 2
• Low input impedance (LoZ) 1000v
• IP-Protection IP54
• True RMS
• Safety class CAT IV 600v / CAT III 1000v
• Display type LCD Inverted
• Non-Contact-Voltage (NCV)
• Torch light
• Acoustic feedback
• Measuring range for frequency 10 Hz to 50 kHz
• Continuity range 0 Ω
• MS90 measuring probes
• IP54 weather protection
• 2 x 1.5v LR6 AA batteries
• Compatible with Bosch lithium battery packs
• Pouch
• Size h x w x d 225mm x 70mm x 50mm
• Weight 0.3kgs
• All Bosch Measuring Tools from Power Tools UK come with full industrial warranty
