Milwaukee M12FPDXKIT-0X Percussion Drill 12v BODY ONLY Carry Case

In stock
Please allow up to 4 working days to deliver
Product Code:
M12FPDXKIT-0X
£119.87 £99.89

View Product Information

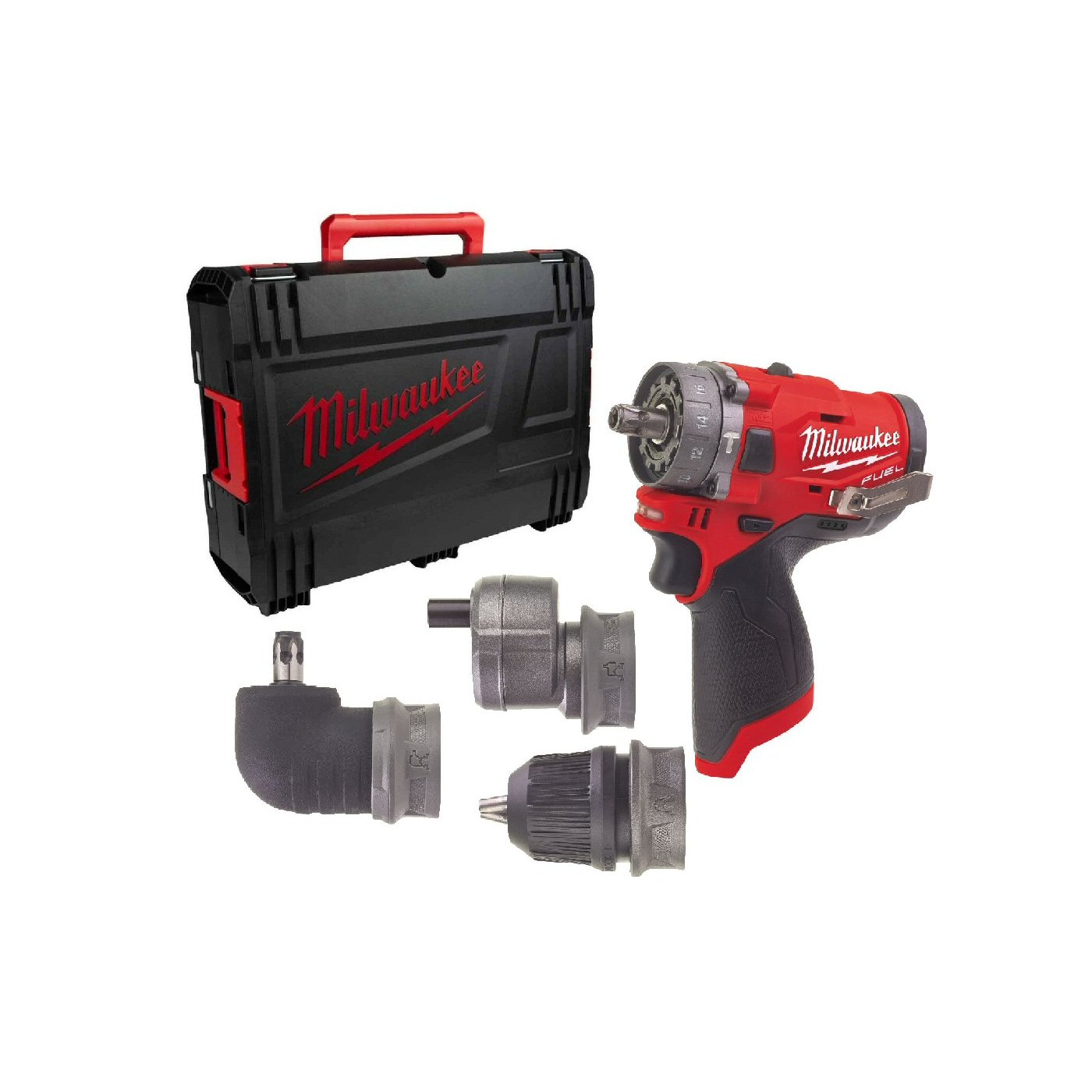

Milwaukee M12FPDXKIT-0X Percussion Drill

12v BODY ONLY M12FPDXKIT-0X Milwaukee Percussion Drill supplied in a useful carry case, this 12v Milwaukee Percussion Drill is a lightweight, compact high performance 6-in-1 percussion drill system for extreme versatility plus removable chuck system with 3 different heads for multiples of applications. The M12FPDXKIT-0X Milwaukee Percussion Drill is built round a brushless POWERSTATE motor delivering up to 44Nm of torque plus full metal planetary gearbox transmission for extreme durability.

Other features include 13mm keyless chuck, full metal right angle 1/4" hex drive head and full metal offset 1/4" hex drive head, LED light for work-space illumination plus a 1/4" hex drive behind chuck fitting reducing the drill length to 138mm when required. The REDLINK PLUS intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load with the REDLITHIUM battery packs (not supplied) providing superior pack construction, electronics and fade-free performance to deliver more run-time and more work over pack life

Specification of 12v Milwaukee M12FPDXKIT-0X Percussion Drill

  • 12v BODY ONLY power tool
  • Brushless POWERSTATE motor
  • Milwaukee FUEL power tool
  • Compact 6 in 1 percussion drill
  • Removable chuck system with 3 different heads
  • Full metal planetary gearbox transmission
  • No load speed 1st gear 0 to 450rpm
  • No load speed 2nd gear 0 to 1700rpm
  • Maximum percussion rate 0 to 25500bpm
  • Maximum torque 44Nm
  • 13mm removable chuck
  • Full metal right angle 1/4" hex drive head
  • Full metal offset 1/4" hex drive head
  • 1/4" hex drive behind chuck fitting
  • Maximum drilling through steel 13mm
  • Maximum drilling through masonry 13mm
  • Maximum drilling through wood 35mm
  • Chuck capacity 13mm
  • Maximum wood screw 8mm
  • LED worklight
  • REDLINK PLUS advanced digital overload protection
  • REDLITHIUM battery packs superior construction, electronics and fade free performance
  • Flexible battery system works with all Milwaukee M12 batteries
  • Milwaukee carry case
  • Weight 1kg
  • All Milwaukee Power Tools from Power Tools UK come with full industrial warranty

Milwaukee Power Tools take great pride in the products they offer professional tradesmen allowing Milwaukee to offer a warranty extension out to 36 months from original invoice date. The initial warranty period is 12 months is covered by Power Tools UK, Milwaukee tool warranty extends this out to 36 months overall by using the registration link on the Milwaukee Website www.milwaukeetool.eu . To gain this free of charge warranty extension customers must register the purchase directly with Milwaukee within 30 days of the invoice date.


Milwaukee warranty covers all defects of the product due to defaults in workmanship or material at the invoice date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages.

The warranty is not valid if the product has been misused, used contrary to the instruction manual or being incorrectly connected. This warranty does not apply to:

  • any damage to the product that is the result of improper maintenance
  • any product that has been altered or modified
  • any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
  • any damage caused by non-observance of the instruction manual
  • any non CE product
  • any product which has been attempted to be repaired by an non-qualified professional or without prior authorisation by Techtronic Industries
  • any product connected to improper power supply (amps, voltage, frequency)
  • any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
  • normal wear and tear of spare parts
  • inappropriate use, overloading of the tool
  • use of non-approved accessories or parts
  • Power tool accessories provided with the tool or purchased separately. Such exclusions including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide
  • Components (parts and accessories) subject to natural wear and tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.
